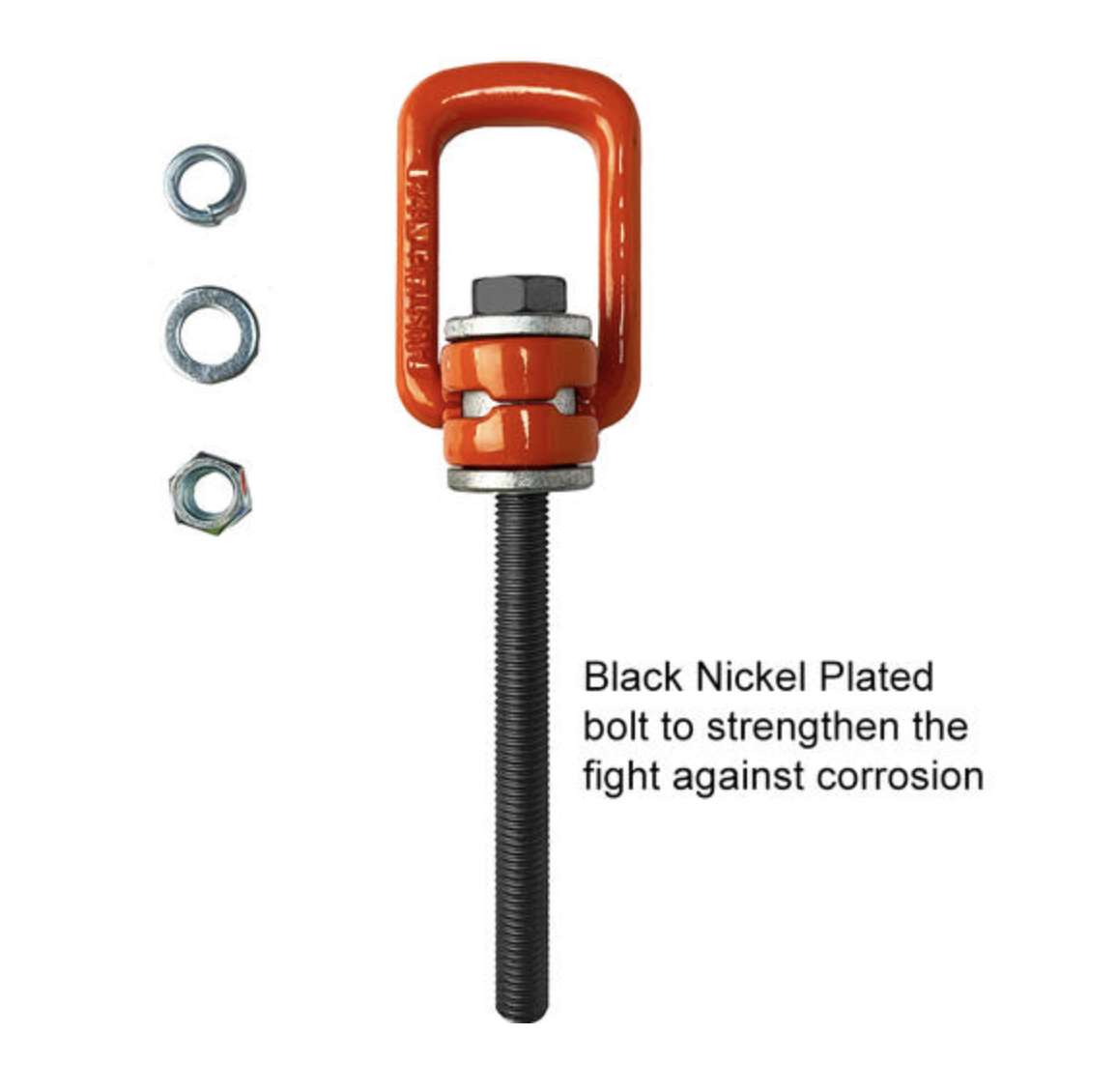

Swivel Lifting Point – Long Thread c/w Nut

The Swivel Lifting Point – Long Thread c/w Nut is engineered for heavy-duty lifting and rigging applications where load direction may vary. Featuring a 360° swivel and 180° pivoting bail, this lifting point eliminates side loading and ensures safe, efficient load handling from any angle. Supplied complete with a long thread bolt and securing nut, it is ideal for through-hole mounting on machinery, moulds, and structural components.

Manufactured from high-grade alloy steel and heat-treated for maximum strength, the Swivel Lifting Point complies with EN 1677-1 and is fully tested to 4x Working Load Limit. Each unit is individually serial numbered and supplied with a certificate of conformity for full traceability.

Key Features:
– 360° swivel and 180° pivot for multi-directional lifting
– Long thread c/w nut for through-hole applications
– Forged alloy steel, heat-treated and magnetic particle inspected
– Compliant with EN 1677-1, 4:1 safety factor
– Individually serial numbered with test certificate
– Suitable for use in lifting moulds, dies, machinery and structural steel

Applications:
– Mould and die handling
– Machinery installation and maintenance
– Structural steel lifting
– General engineering and fabrication
