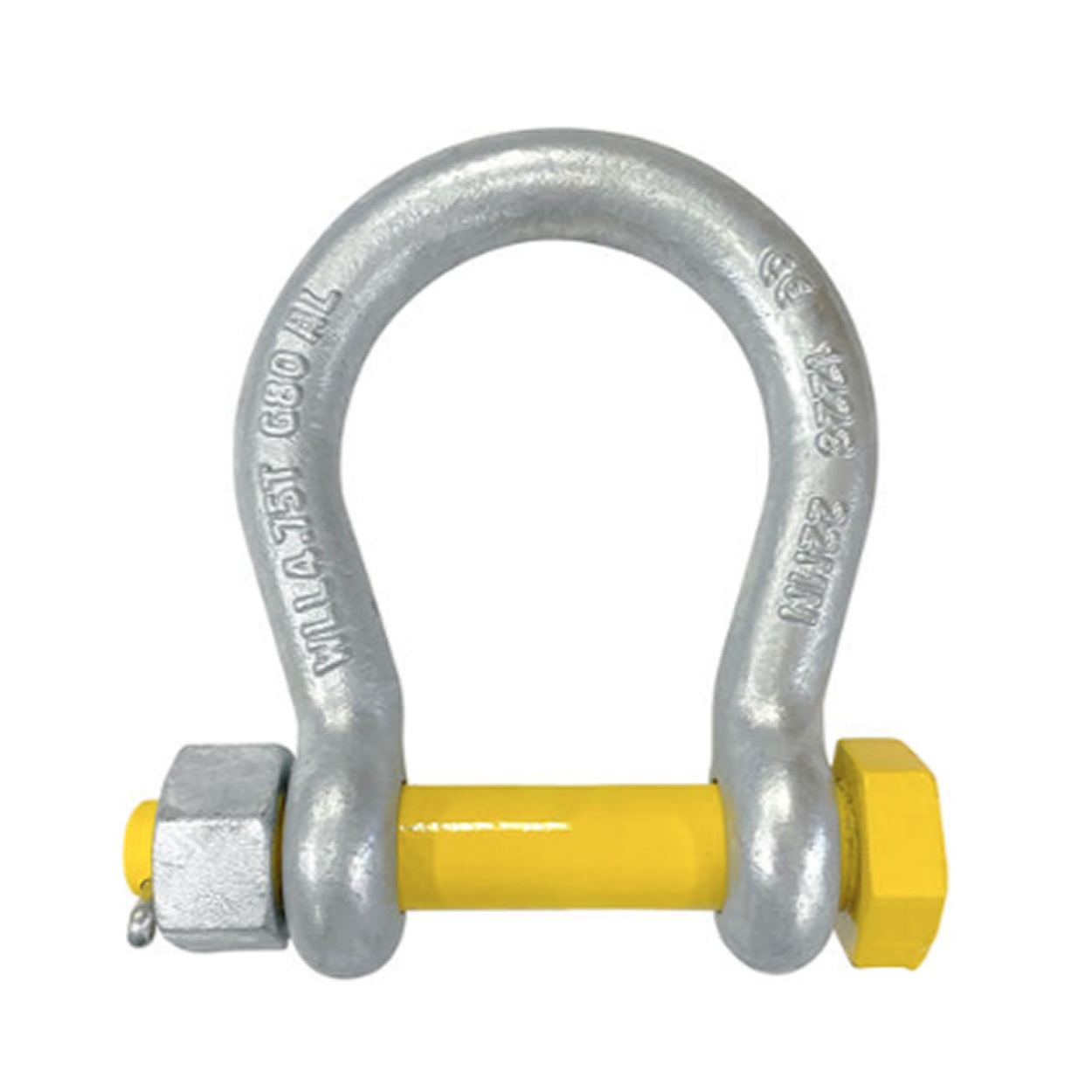

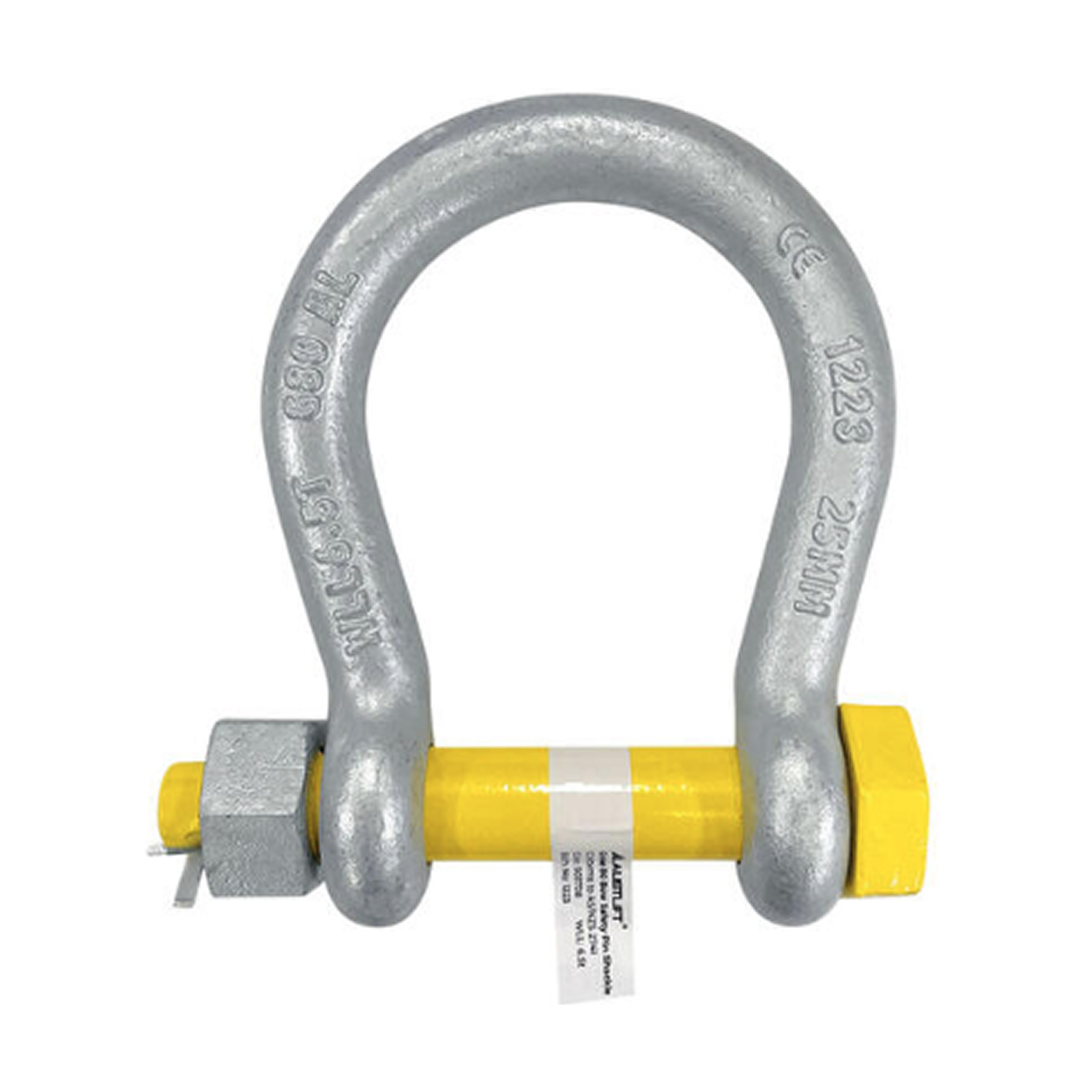

Grade 80 Frogmouth Shackle with S/S Safety Pin

G80 Frogmouth Safety Pin Bow Shackles feature a wider mouth than standard Grade S shackles. They are designed for lifting applications requiring extra width for connections to chain slings, synthetic slings, wire rope, and other rated fittings. The safety pin design allows for rotation during loading and is well suited to environments prone to vibration, helping to prevent pin dislodgement.

Specifications & Features

• Standards: Conforms to AS2741.

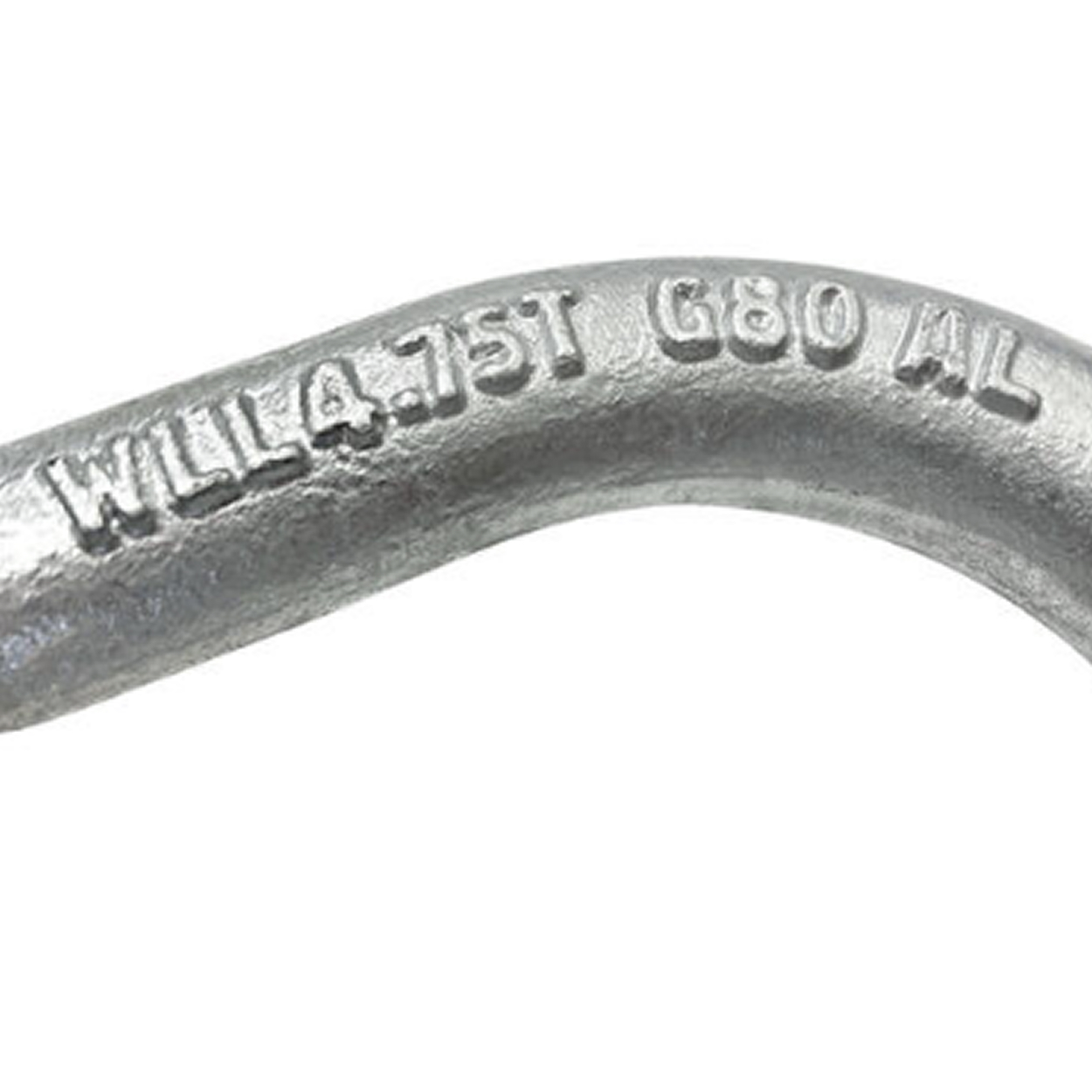

• Markings: Work load limit in tonnes, quality grade, batch number, nominal size (mm) and supplier identification on both the bow and load pin.
• Testing: Proof tested to 2x work load limit; minimum break force of 6x work load limit.
• Certification: Test certificates available upon request.
• Applications: Suitable for lifting in civil, marine, agricultural, mining and engineering industries.

Material

• Body: Grade 80 material, hot-dipped galvanised.
• Safety Pin: Stainless steel (S/S).

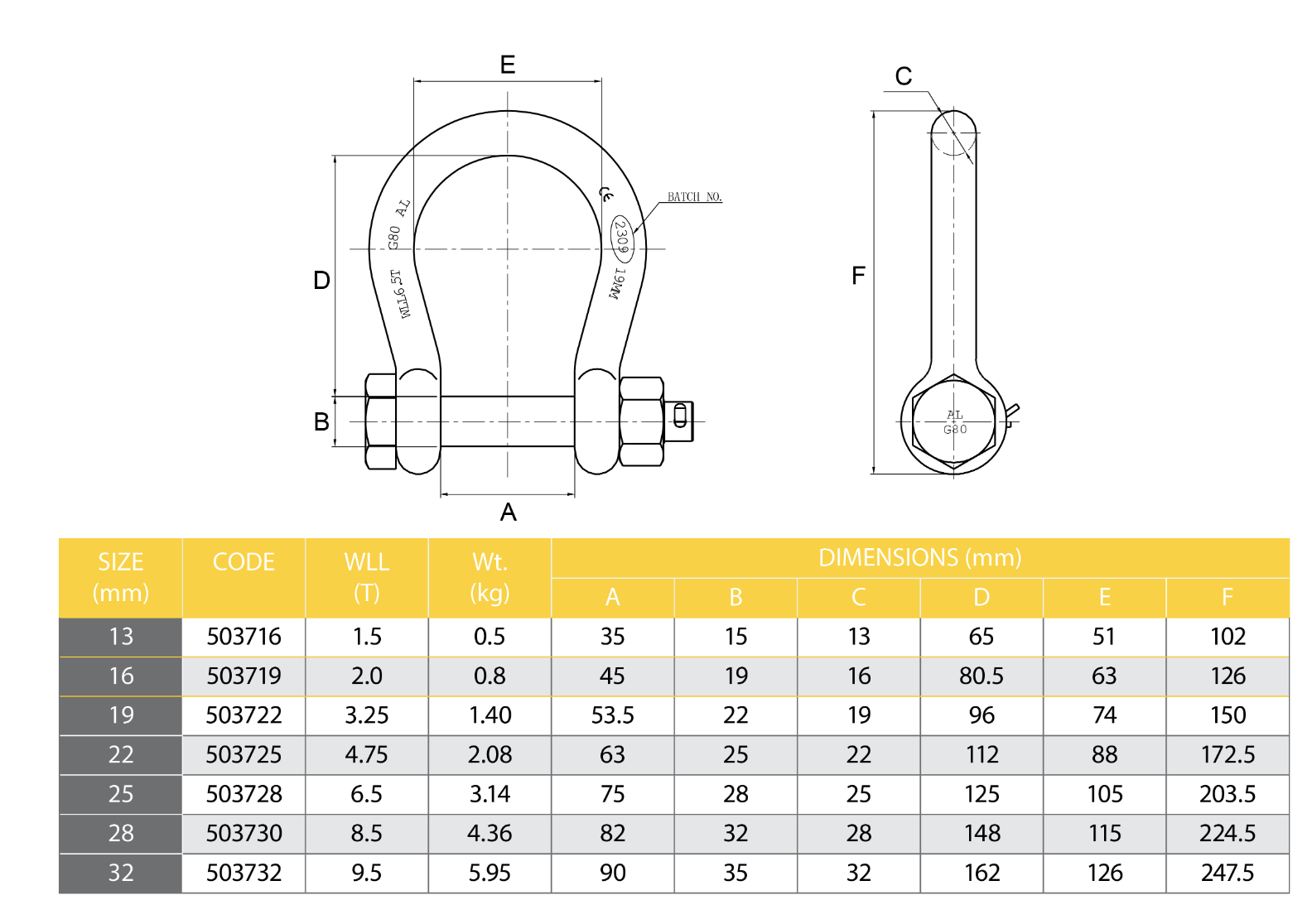

Available capacities: 1.5T, 2T, 3.25T, 4.75T, 6.5T, 8.5T and 9.5T.
